In ShipIT Setup start with entering the API Base URL (in this example a test URL)

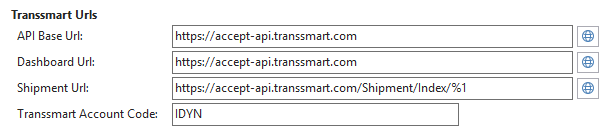

Figure 2-7: ShipIT Setup General FastTab Transsmart URLs

Click Update Master Data to connect to Transsmart webservices and download all available Transsmart master data:

Figure 2-8: ShipIT Setup Transsmart Master Data

In the example below, two available Carrier ID’s have been downloaded. In the next steps these ID’s need to be mapped to you Microsoft Dynamics NAV Shipping Agents, Shipment Methods, Currencies, and Country/Region codes.
In ShipIT > Setup > Transsmart Master Data click Carriers

Figure 2-9: ShipIT Setup Transsmart Master Data, Carriers

Select a line and click Carrier Profiles to view details on certain shipment methods available from this shipping agent and which methods are ‘mapped’ with your Dynamics NAV.

Figure 2-10: ShipIT Setup Transsmart Master Data, Carrier Profiles

Another example below demonstrates the list of Shipment Method*s, referred as *Incoterms, available from Transsmart:

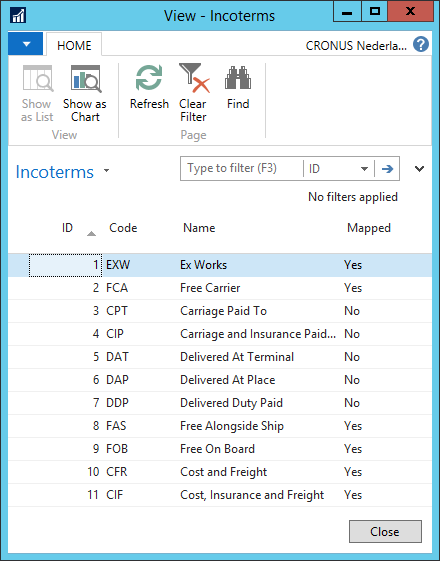

Figure 2-11: ShipIT Setup Transsmart Master Data, Incoterms

Next step is to ‘map’ the downloaded codes to your Dynamics NAV codes.
